Engine diagnosis and repair · Al Quoz 4
Find the cause of warning lights, overheating, oil or coolant loss, misfires, smoke, timing noise, reduced power, or internal engine damage before choosing a repair. We test the engine and related systems, explain the practical options, and provide a written estimate before work begins.
Free workshop inspection and free pickup and delivery are available in Dubai. Dedicated on-site inspection is available, with visit terms confirmed before dispatch.
Start with the behavior
The same symptom can come from several systems. A warning light does not automatically mean the engine needs rebuilding, and a mechanical noise should not be dismissed as an electronic fault. We connect the complaint to measurements before recommending parts.
We read current, pending, and history faults, then review freeze-frame information and relevant live data. Wiring, voltage, air leaks, fuel delivery, sensors, timing, exhaust after-treatment, and mechanical condition may all influence an engine warning.
Possible causes include plugs, coils, injectors, fuel pressure, intake leaks, compression loss, valve issues, timing variation, wiring, mounts, or control faults. Swapping ignition parts without isolating the cylinder and cause can waste money.
We inspect visible leaks, pressure retention, thermostat operation, pumps, fans, radiators, hoses, expansion tanks, oil condition, combustion-gas evidence, and temperature data. Continued driving can turn a cooling repair into cylinder-head or engine damage.
Cam covers, timing covers, filter housings, coolers, sumps, seals, turbo oil lines, and crankcase ventilation can leak. Low pressure needs a measured check because the cause may involve oil level, viscosity, pickup restriction, pump condition, bearing clearance, or an electrical reading fault.
Restricted airflow, intake leaks, throttle control, fuel pressure, ignition, turbocharger control, charge pipes, exhaust restriction, sensor data, and transmission requests can limit power. We identify the system creating the restriction before quoting a turbo or engine.
Noise location, engine speed, load, temperature, smoke color, oil usage, coolant loss, and exhaust behavior help narrow the cause. Timing components, accessories, injectors, turbochargers, valve gear, pistons, bearings, seals, or the crankcase system may need testing.
Repair only what the results support
Engine work should match the confirmed failure and the condition of the complete unit. We compare total cost, parts availability, machining, installation, related systems, and expected outcome instead of treating every serious symptom as the same job.
Suitable when the base engine is healthy and the fault is in ignition, fuel delivery, air intake, cooling, lubrication sealing, wiring, sensors, mounts, accessories, turbo control, or exhaust equipment. This is normally the least invasive choice and preserves the original engine assembly.
Appropriate when testing isolates a cylinder head, valve gear, timing component, oil pump, gasket, seal, or other accessible internal fault while the remaining engine measurements are acceptable. The quote identifies machining, gaskets, fasteners, fluids, and related parts.
Considered when wear or damage affects multiple internal components but the block, head, crankshaft, and main castings can be restored within measurement limits. A rebuild requires dismantling, inspection, machining decisions, parts measurement, controlled assembly, installation, and testing.
A new, remanufactured, reconditioned, or used unit may be more practical when damage is extensive, a casting is unusable, machining and parts exceed a replacement total, or schedule matters. Engine code, fittings, electronics, condition, source, included accessories, and installation scope must be clear.
Market-based planning ranges
These estimated AED ranges help compare likely repair depth before diagnosis. The final total varies with the engine, fault, access, parts condition, machining, related damage, testing, fluids, outside services, and VAT treatment. The written estimate states what is included and excluded.
| Engine work | Estimated price | Typical inclusion | Main price variables |
|---|---|---|---|
| Initial workshop inspection | AED 0 | Visible checks and an initial diagnostic direction | Advanced testing, dismantling, and outside services |
| Diagnostic scan and guided testing | AED 250 to 850 | Relevant fault review, live data, and focused electrical or mechanical checks | Intermittent faults, wiring access, road testing, and test duration |
| Ignition or misfire repair | AED 650 to 3,800 | Applicable plugs, coils, seals, labor, and verification | Injector, compression, wiring, catalytic, or timing damage |
| Cooling-system engine repair | AED 900 to 6,500 | Confirmed pump, thermostat, hose, tank, radiator, fan, or sealing work | Overheating damage, turbo cooling, access, and multiple leaks |
| Oil-leak repair | AED 850 to 7,500 | Applicable gasket, seal, housing, line, cleaning, and recheck | Leak location, engine removal, timing access, and oil contamination |
| Timing-system repair | AED 4,500 to 14,000+ | Applicable chains or belts, guides, tensioners, seals, labor, and timing verification | Engine family, access, valve damage, cam components, and fasteners |
| Cylinder-head repair | AED 6,500 to 18,000+ | Removal, inspection, applicable machining, gaskets, bolts, fluids, and testing | Cracks, valve damage, overheating depth, and both-bank work |
| Engine rebuild | AED 18,000 to 42,000+ | Dismantling, measured internal repair, assembly, installation, fluids, and testing | Block, crank, pistons, bearings, heads, machining, turbos, and parts supply |
| Replacement engine installation | AED 16,000 to 55,000+ | Selected engine unit, installation, fluids, adaptation, and initial testing as quoted | New or used condition, engine code, included accessories, freight, and programming |
Independent workshop pricing can be about 65% to 70% below agency pricing when the parts condition and completed repair scope are equivalent. Compare the complete written work, not a parts-only or starting figure.

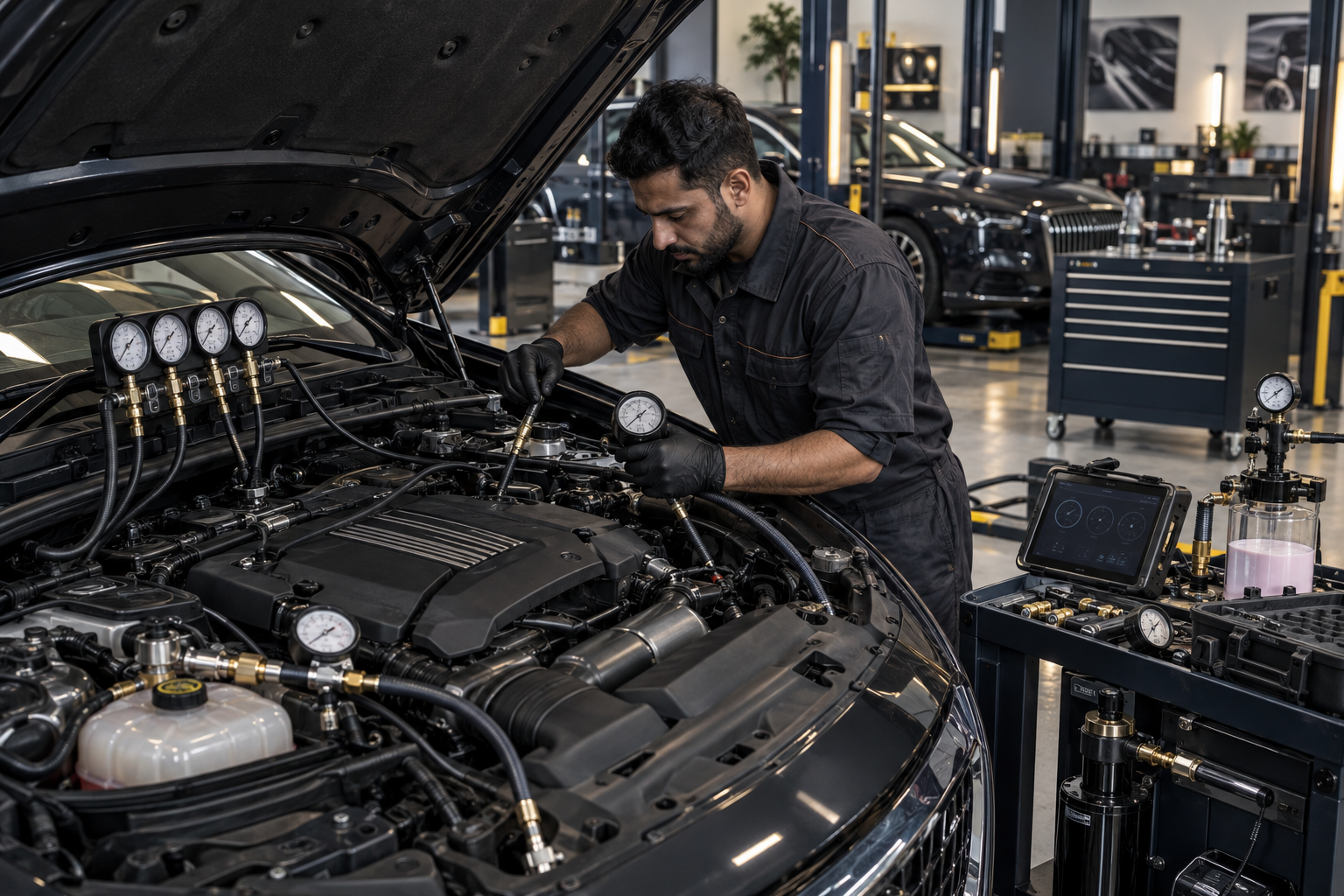

Codes are a starting point
A scan can identify which system noticed a problem, the conditions when it occurred, and useful live values. It does not prove that the named component caused the failure. We compare electronic information with the symptom, service history, oil and coolant condition, visible inspection, and direct tests.
Depending on the concern, testing can include smoke or vacuum checks, fuel-pressure measurement, ignition waveform review, injector balance, compression, leak-down, cooling-system pressure, combustion-gas testing, mechanical oil pressure, crankcase pressure, turbo control checks, exhaust backpressure, or borescope inspection.
The result is a repair choice with a reason. If dismantling is required to confirm internal damage, the written estimate separates that inspection stage from the final repair so you can approve the next step with clearer evidence.
Protect the engine before repair
Stop the engine if the oil-pressure warning remains on, temperature rises into the danger area, coolant or oil is pouring out, the engine knocks heavily, thick smoke continues, power drops suddenly, or the dashboard instructs you to stop. Continuing can damage bearings, cylinder heads, catalytic converters, turbochargers, or the complete engine.
Move out of traffic only if the vehicle can do so without worsening the fault. Do not open a hot pressurized cooling system. Record the warning message, temperature behavior, smoke, leak location, and sound if it is safe.
Free pickup and delivery are available in Dubai. Tell us whether the Jaguar starts, moves, holds coolant or oil, and shows any red warning so suitable transport can be discussed.
A dedicated inspection van is available when the location or condition makes a mobile check useful. Visit terms and inspection limits are confirmed separately. Internal engine repair requires workshop equipment.
A staged engine decision
You can start with the Jaguar model, the symptom, and your preferred workshop visit or pickup. Mileage, engine code, service records, warning photos, or recent repairs can be shared later when they help the diagnosis or parts match.
A focused external repair may take one or several working days. Timing-system, cylinder-head, rebuild, or replacement work takes longer and depends on testing, machining, and parts availability. The written estimate gives practical timing after diagnosis.
Three useful cost scenarios
These are planning estimates rather than claims about completed customer vehicles. They show how diagnosis, parts, labor, fluids, and testing can combine. Final pricing follows inspection and the chosen parts condition.
Typical job estimate
Diagnostic testing, spark plugs, two ignition coils, injector and compression checks, cam-cover sealing work, oil and filter, cleaning, and final verification. The estimate assumes compression and catalytic converters remain serviceable.
Typical job estimate
Cooling-system pressure testing, water pump and thermostat work, applicable timing components, seals, fasteners, coolant, oil service, timing verification, and extended hot-running checks. Cylinder-head damage is excluded.
Typical job estimate
Engine testing, cylinder-head removal, measured head repair, valve and sealing work as required, new gaskets and fasteners, fluids, reassembly, installation, and final pressure and road checks. Block or lower-end damage would change the repair choice.
Match the engine before ordering
We accept engine-repair enquiries for XE, XF, XJ, F-TYPE, F-PACE, E-PACE, I-PACE support systems, XK, S-TYPE, X-TYPE, and earlier models. Engine design, induction, cooling, timing, emissions equipment, software, and access differ by year and specification.
| Engine family | Common repair areas | What must be confirmed |
|---|---|---|
| Ingenium four-cylinder gasoline and diesel | Timing concerns, cooling leaks, oil leaks, turbo and intake faults, emissions-related warnings, injectors, and balance or vibration complaints | Exact engine code, timing history, oil condition, compression, cooling integrity, turbo system, and applicable emissions equipment |
| AJ-V6 and supercharged V6 | Cooling-system leaks, supercharger drive or coupling noise, ignition faults, oil leaks, timing components, injectors, and crankcase ventilation | Leak source, pressure results, bank-specific data, supercharger condition, cylinder balance, and service history |
| AJ-V8 and supercharged V8 | Cooling components, timing wear, ignition, oil sealing, supercharger systems, injectors, internal noise, and overheating damage | Both-bank measurements, oil pressure, cooling pressure, timing correlation, cylinder sealing, and accessory condition |
| Earlier Jaguar gasoline and diesel engines | Age-related sealing, cooling, fuel delivery, wiring, vacuum systems, timing, compression, corrosion, and parts availability | Previous repairs, engine identity, parts source, machining condition, and whether targeted repair or replacement gives the clearer total |
Two Jaguars with the same badge can use different engines, control systems, pumps, sensors, and fittings. A VIN or engine code may be requested after first contact when it is needed to match parts, but it is not a barrier to booking an inspection.

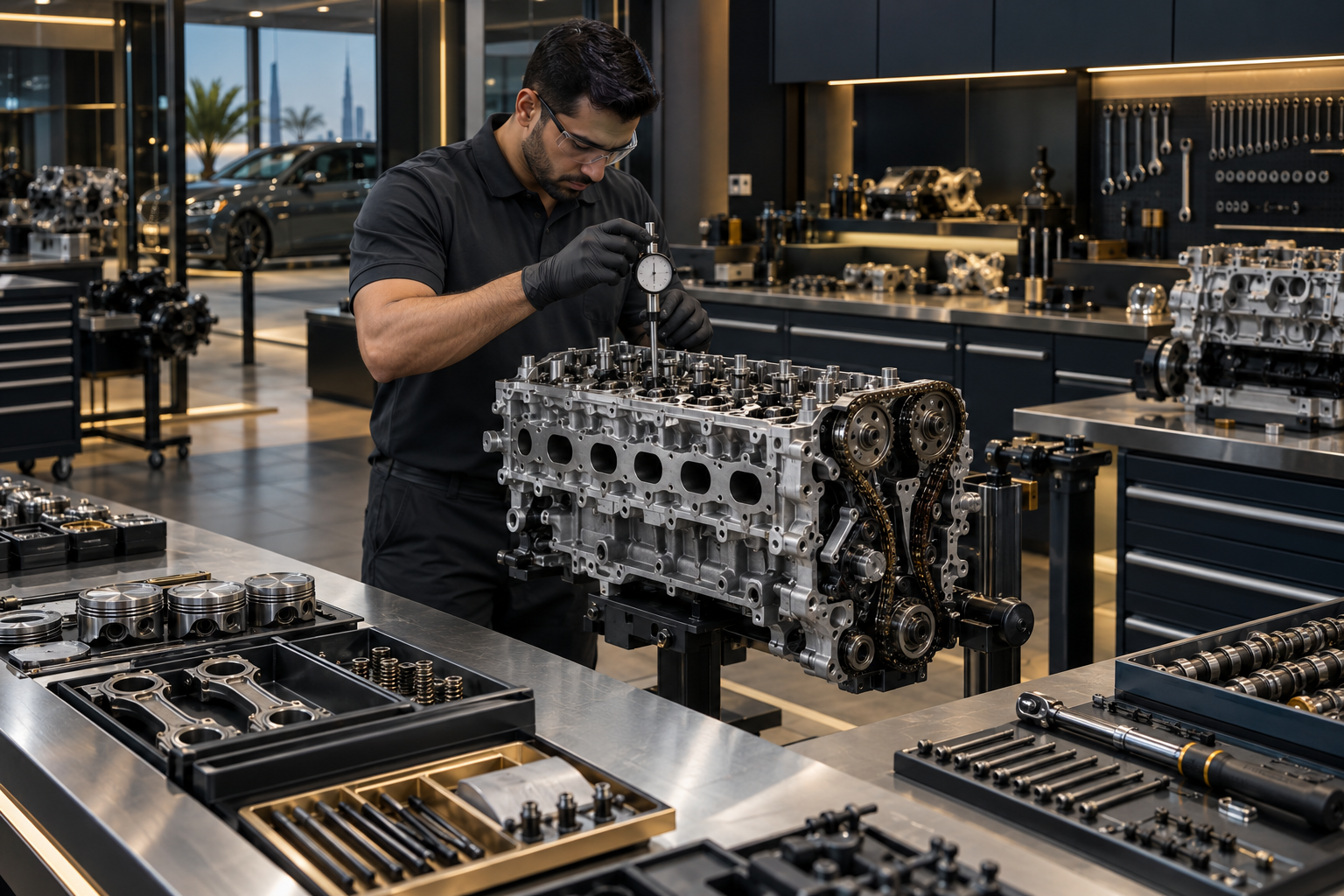

Measure before rebuilding
A rebuild is not simply a set of gaskets. The engine must be dismantled and cleaned, and the block, cylinder heads, crankshaft, bores, pistons, rings, bearings, valve gear, timing parts, oil system, and sealing surfaces must be inspected or measured as relevant. The result decides which parts can be reused and which must be replaced or machined.
The estimate should separate removal and installation, internal parts, gasket and fastener sets, machining, fluids, filters, cooling-system work, turbocharger or supercharger concerns, injectors, mounts, outside services, and testing. If the initial dismantling stage is chargeable, that amount and its decision point are stated before work begins.
Replacement may be preferable if a casting is cracked, cylinder damage exceeds machining limits, the crankshaft is unusable, parts supply is poor, or the rebuild total is higher than a suitable complete unit. A used engine needs an engine-code match, source and condition information, included-accessory list, and clear installation scope. A new or remanufactured unit has a different price and supply route.
Know what you are approving
The quote identifies the symptom, test result, failed area, recommended work, and alternatives where they are practical. It distinguishes the cause from damage that happened afterward.
Parts condition, quantities, labor, machining, fluids, filters, seals, fasteners, programming, outside services, and final checks are listed when they affect the total.
VAT treatment, expected timing, known exclusions, and any staged dismantling are stated. New internal findings are discussed before approved work or cost expands.
Compare quotes at the same depth. A parts-only engine price is not an installed total. A low repair figure may omit diagnosis, machining, gaskets, fasteners, fluids, cooling repairs, turbo or supercharger work, adaptation, or final testing. The complete scope protects the buying decision.
Choose a convenient inspection option
Bring the Jaguar to Al Quoz 4 for an initial inspection. Workshop access to lifting, scanning, pressure testing, compression equipment, and controlled engine testing supports a complete diagnosis.
Free pickup and delivery are available across Dubai. Share whether the car starts, overheats, leaks fluid, smokes, or has an oil-pressure warning so suitable collection can be discussed.
A mobile inspection van is available when the vehicle location or condition makes an on-site check useful. Visit terms and testing limits are confirmed separately before dispatch.
Start with the model and a short description of the problem. Optional photos or warning messages can help. We will request mileage, engine code, service records, or earlier invoices only if they are useful for the next diagnostic or parts decision.
Direct answers before booking
Yes. We read the relevant faults and operating data, then test the circuit, supporting system, or mechanical condition indicated by the results. A fault code alone does not automatically justify replacing the named part.
The initial workshop inspection is free. Advanced diagnostic testing, chargeable dismantling, machining inspection, outside services, or a dedicated on-site visit may have a separate amount. Any charge is explained before it begins.
Stop the engine safely if the red oil-pressure warning remains on. Low pressure can damage bearings, timing equipment, turbochargers, and the complete engine very quickly. Call to discuss pickup.
Yes. Severe or repeated overheating can distort cylinder heads, damage gaskets, reduce lubrication, affect pistons and bores, and harm catalytic or turbo equipment. Stop when the temperature enters the danger area.
No. The answer depends on internal damage, reusable castings, machining, parts supply, labor, and the cost and condition of a suitable replacement. We compare complete installed totals after measurements.
A used unit can be considered when the engine code, fittings, electronics, condition, source, and included accessories are suitable. The estimate should state the unit condition, installation work, fluids, adaptations, exclusions, and required checks.
A focused external repair may take one or several working days. Timing, cylinder-head, rebuild, or replacement work takes longer and depends on testing, machining, and parts availability. A practical schedule follows diagnosis.
Yes. Free pickup and delivery are available in Dubai. Tell us about leaks, smoke, overheating, noise, and warning lights so the vehicle can be moved appropriately.
Start with diagnosis, not guesswork
Send the model and a short description of the warning, leak, noise, smoke, overheating, or power loss. We will discuss safe arrival, free pickup and delivery, the free workshop inspection, and the next practical test, including whether the symptoms point to Jaguar transmission repair or an oil-system service.
